Project Details:

Architect:

John Pawson Architects

Products used:

Overview/Brief

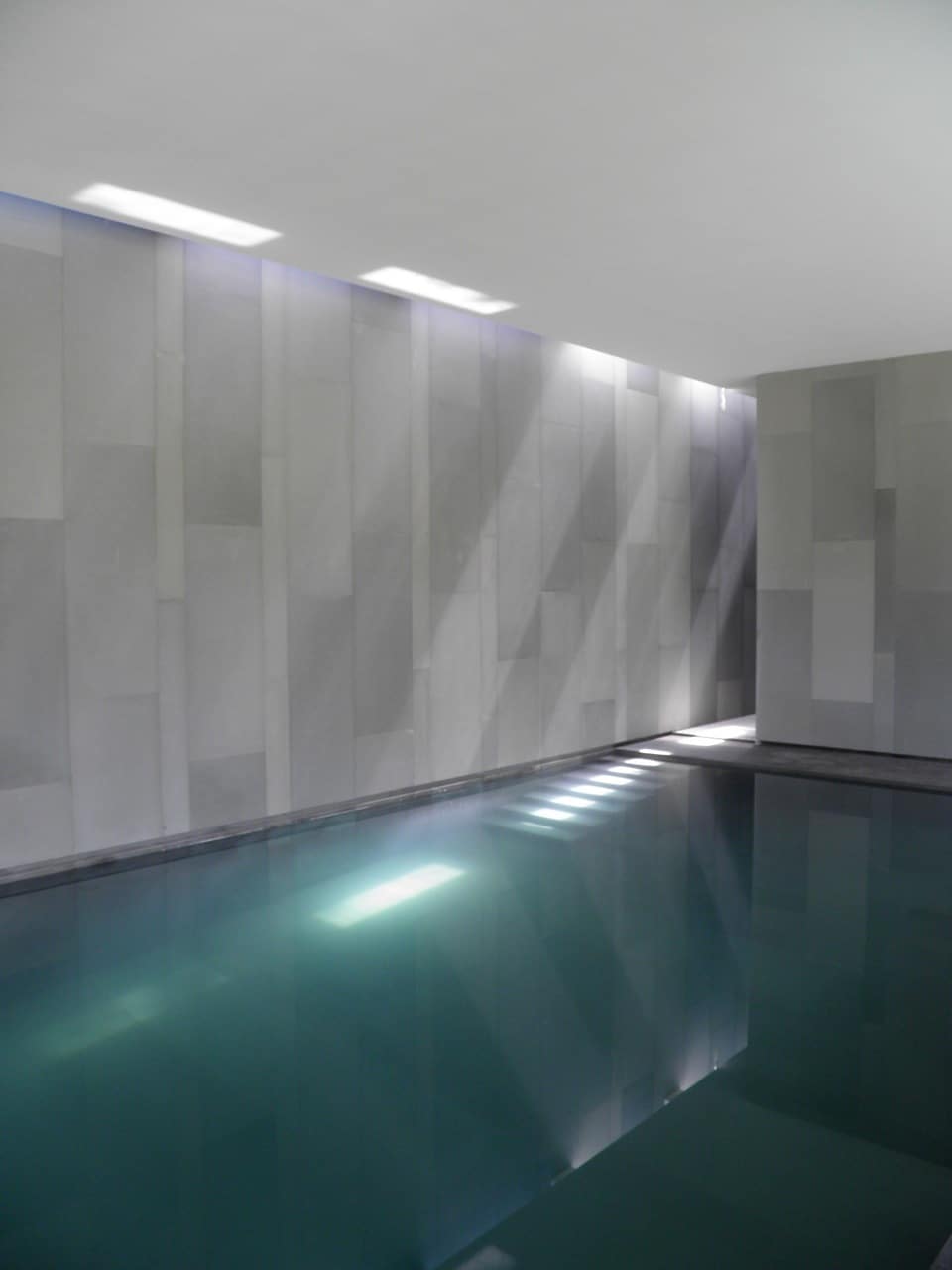

The architect wanted to get light into the swimming pool and communal areas below a flat roof. The upstand was formed out of concrete.

Solution

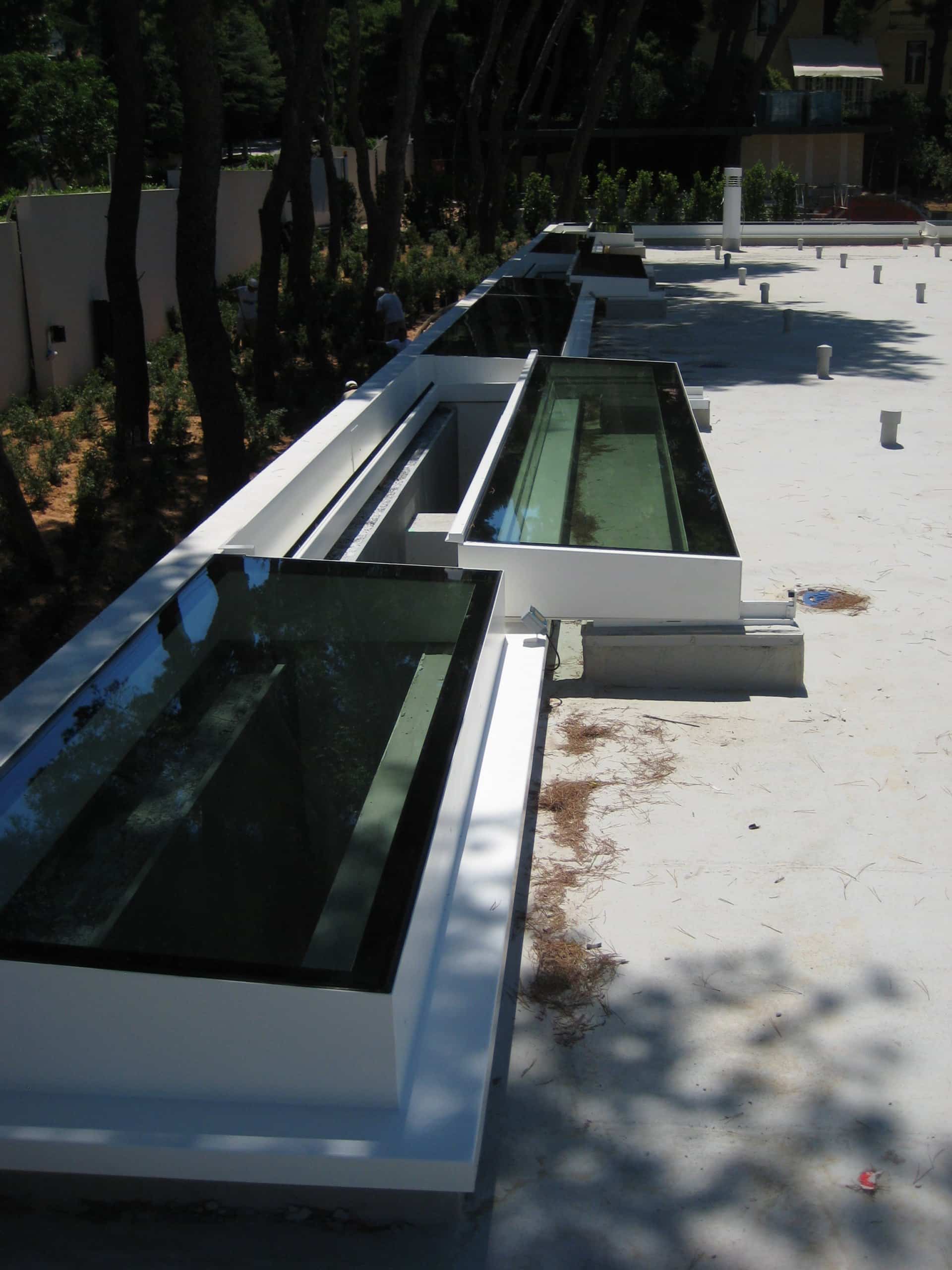

The Glazing Vision team flew out to check the upstands and ensure a great fit. To get ventilation into the area the fixed rooflights were broken up to incorporate sliding sections.

Products & Dimensions

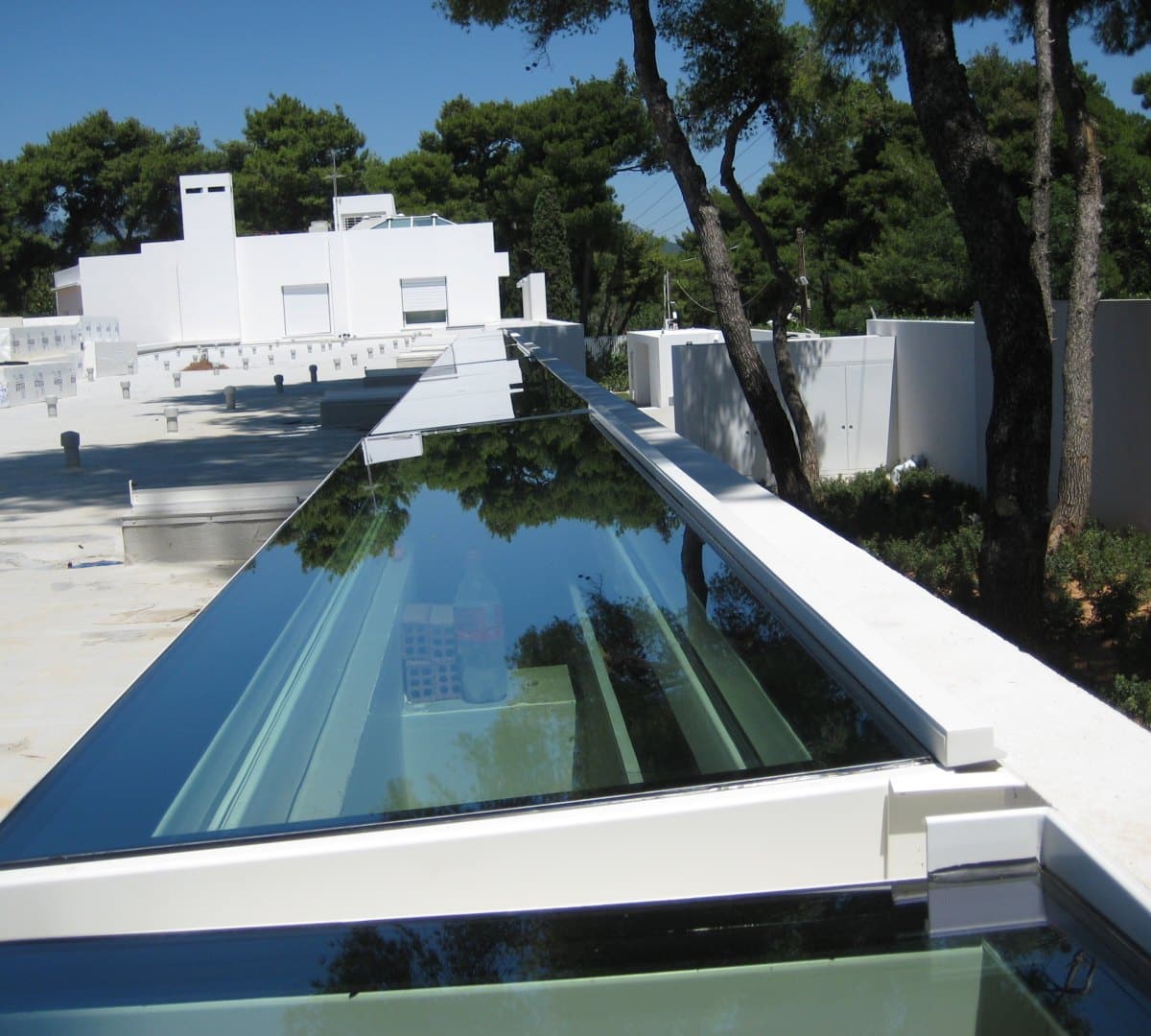

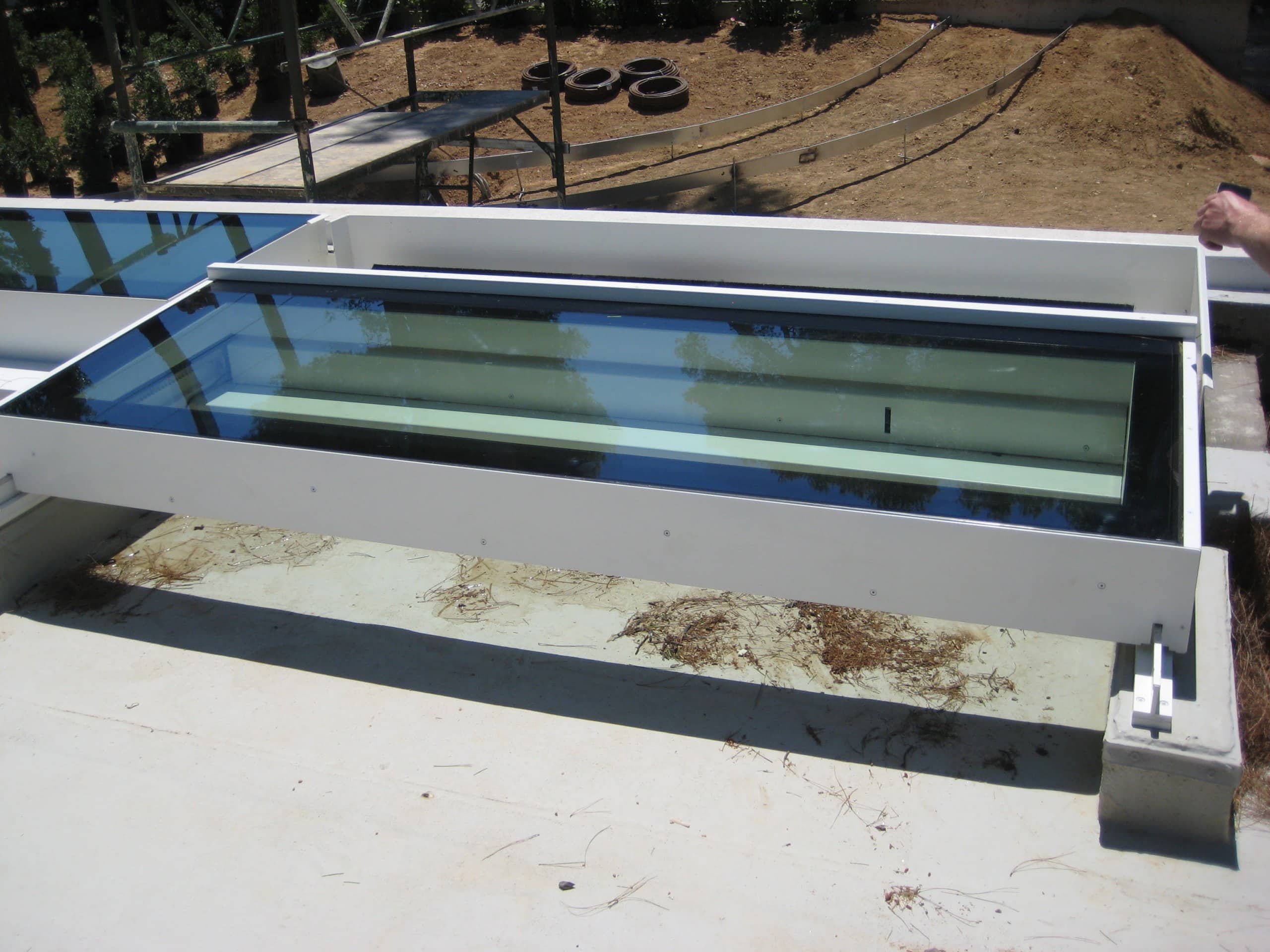

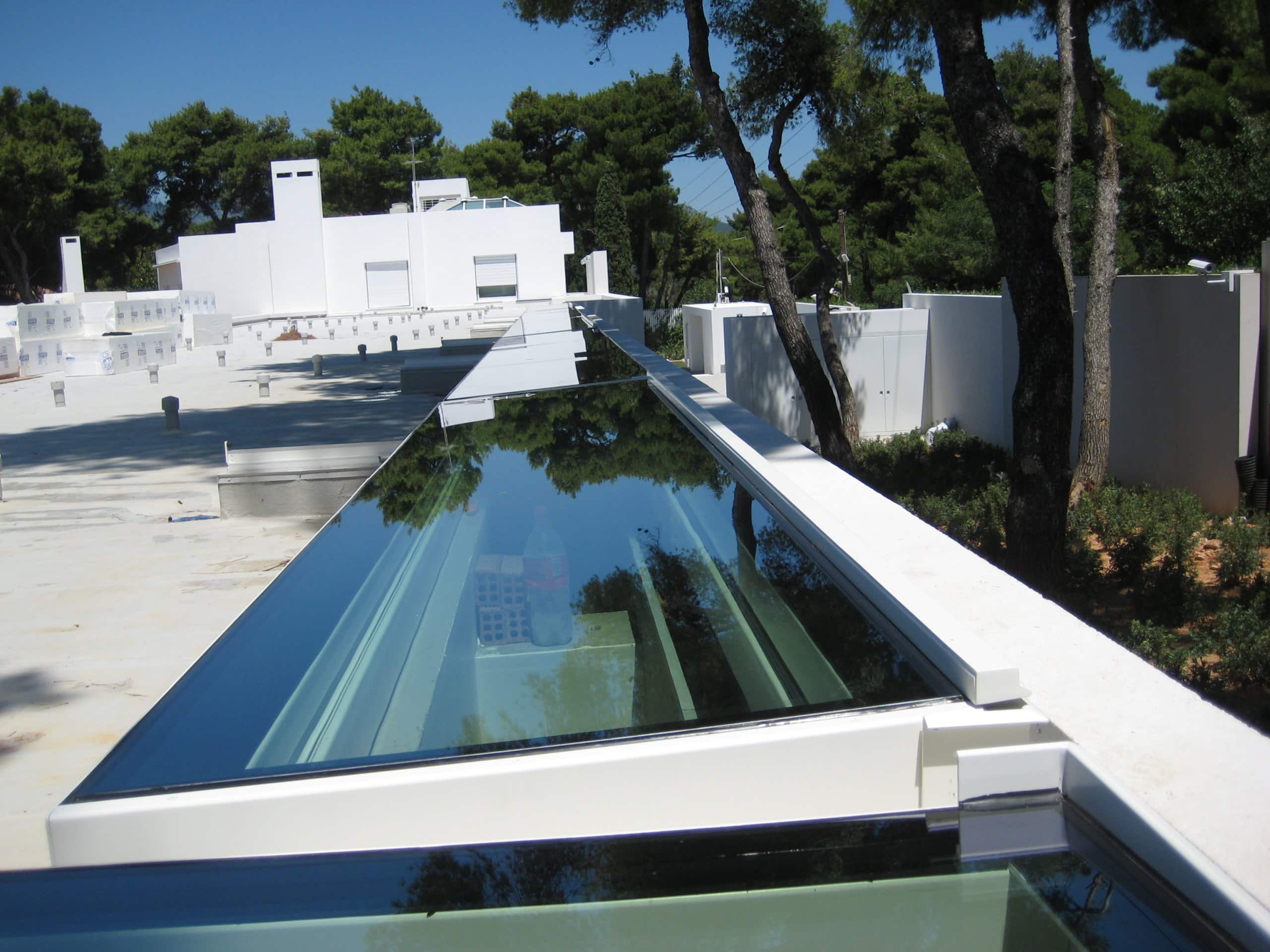

3 No. Bespoke Sliding Rooflights 4100mm x 820mm, sliding in the 820mm dimension to create 100% clear opening, wall abutted on one 4100mm dimension, pitch to be built into the rooflight

2 No. Fixed Flushglaze Rooflights 8200mm x 820mm, in 4 sections of 2050mm x 820mm with a silicone seal at the join (to align with internal beams), wall abutted on the 8200mm dim 1 No. Fixed Flushglaze Rooflight 2050mm x 820mm, wall abutted on the 2050mm dim

3 No. Fixed Flushglaze Rooflight 2200mm x 820mm, wall abutted on the 2200mm dim 1 No. Bespoke Sliding Rooflight 2450mm x 820mm, sliding in the 820mm dimension to create 100% clear opening, wall abutted on one 2450mm dimension, pitch to be built into the rooflight

Please note: Flat sliding rooflights can only be used for access if suitable balustrades are installed, Glazing Vision strongly recommends seeking guidance from building control before commencing works on site.
