FLUSHGLAZE INTERNAL WALK ON ROOFLIGHT

Walk-on rooflights using Flushglaze technology designed to be installed flush with internal flooring.

Product Specifications
Make an Enquiry

Key Features:

  • Safe for foot traffic
  • 1.5kN/m² Uniform Load 2.0kN Concentrated Load
  • Anti slip options available
  • Available in bespoke shapes
  • sizes and glass specifications
  • Heat soak tested toughened laminated safety glass

contact our team

To find out more about design considerations for your project, contact us on 01379 658 300 or request a CPD.

Make an enquiry

Specification Details

Request a CPD
  • Download Datasheet
  • View NBS Clause
  • Download Installation Guide
  • Download O&M Manual
  • Download Product Brochure
  • Request Bim Model
  • Download CAD Drawings

Download CAD Drawings

Fields marked * are required

All of our products drawings are available to download in PDF and DXF files, please submit your details to receive your requested resources.

All of our products drawings are available to download in PDF and DXF files, please submit your details to receive your requested resources.

CAD Selection*
Contact Me Regarding Project
Privacy Policy*
*

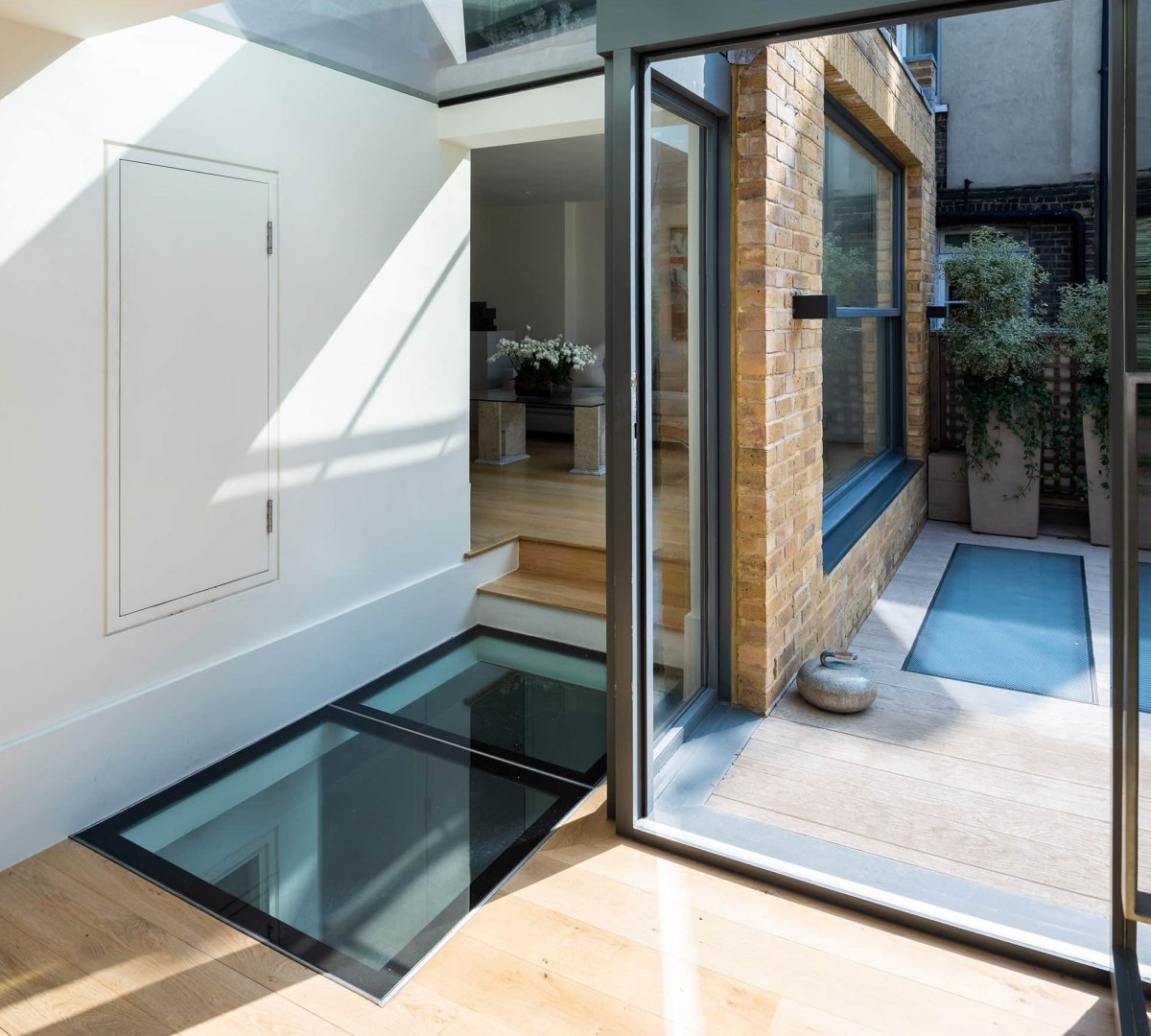

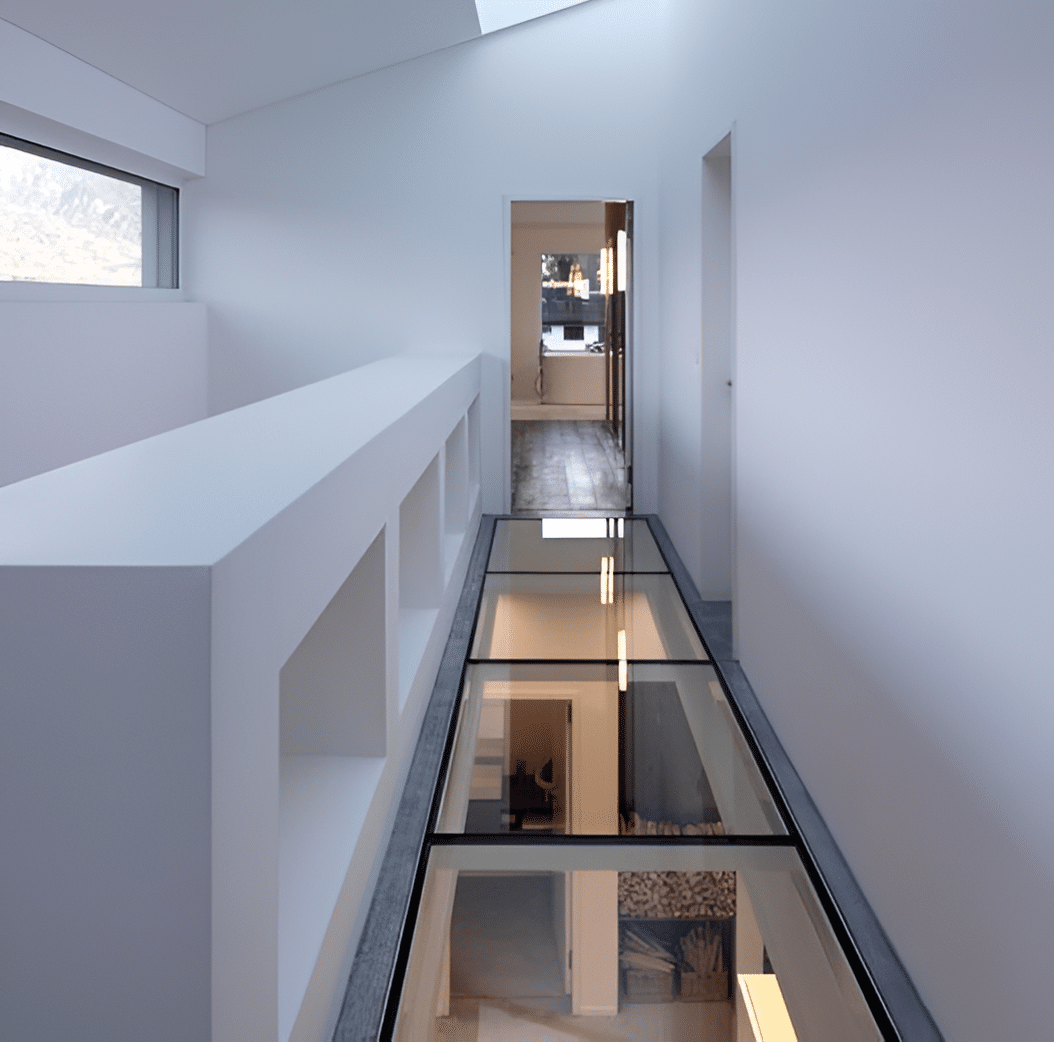

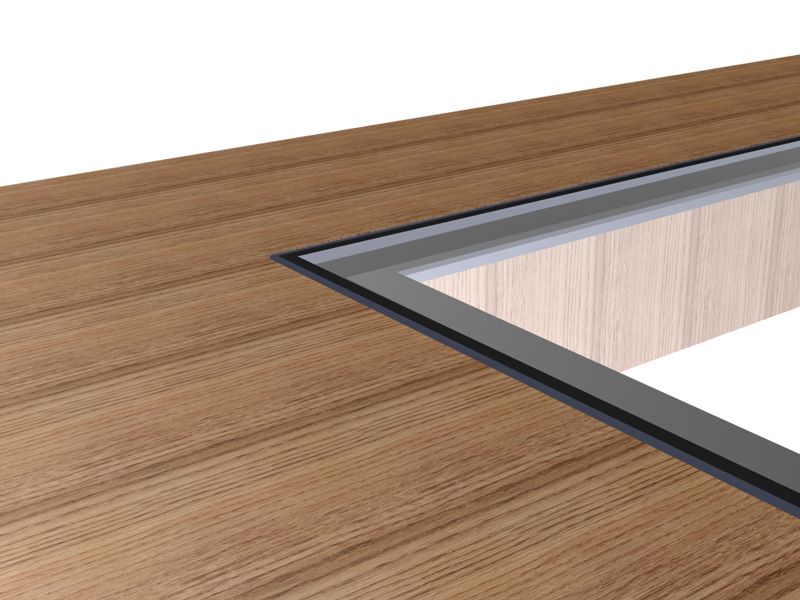

These units are commonly installed to distribute natural daylight within a building, achieving a flush finish with the flooring. Unlocking the potential of a dark basement or adding light to rooms within the home without sacrificing usable space.

Our standard glass specification is designed to withstand regular foot traffic in UK domestic applications with uniform loading’s of 1.5kN/m² and concentrated loading’s of 2.0kN in accordance with BS EN 1991-1-1-1:2002.

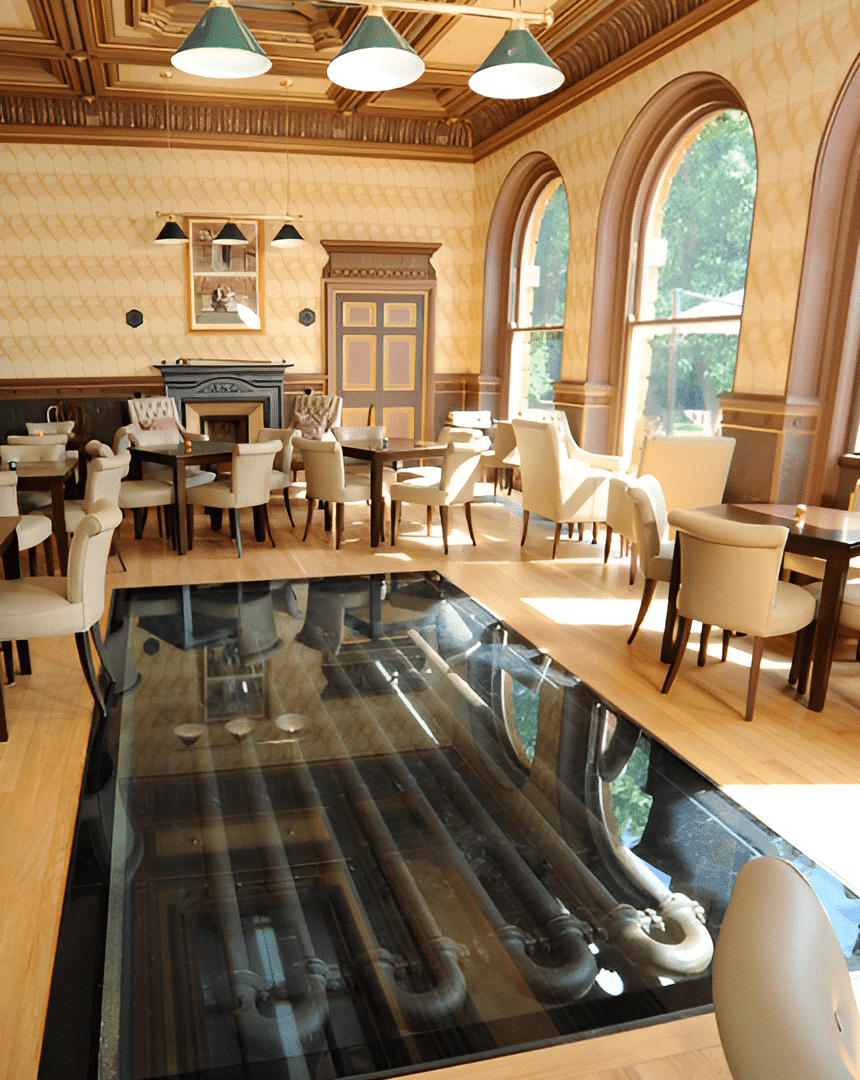

Glazing Vision can also design and manufacture walk on rooflights for other applications such as public areas, commercial or heavy duty applications, where loading’s will be higher.

Internal walk on units are also available in bespoke wall abutted or multi-part variations using aluminium back to back angles for structural support or as external walk on units for balconies.

Note: Care should be taken when walking on glass that is wet. Anti-slip finishes are available for all our walk on rooflights. Please contact our technical sales team for further information.

Options

Anti-slip finishes are available for all our walk on rooflights

Available in bespoke shapes, sizes and glass specifications

Standards

1.5kN/m² Uniform Load 2.0kN Concentrated Load

Heat soak tested toughened laminated safety glass

Related Products

Flushglaze Fixed Rooflight

Flushglaze Fixed Rooflight

Flushglaze Walk On Rooflight

Flushglaze Walk On Rooflight

Related Case Studies

Show all

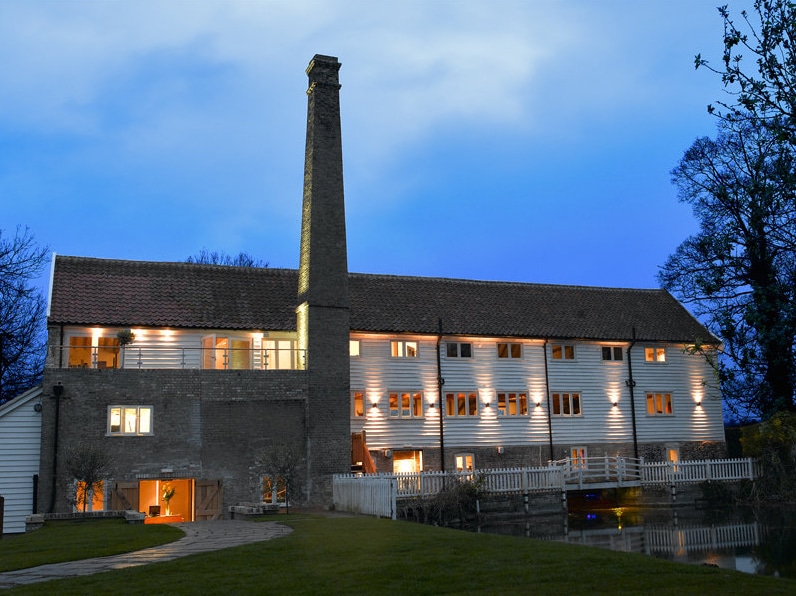

Balancing Barn, Suffolk
